Understanding tRPC using Next.js

What is tRPC?

tRPC stands for TypeScript Remote Procedure Call, which provides end-to-end type safety for your API endpoints.

Setting up tRPC & Next.js

Create a new brand new Next.js app using the following command. And make sure to use the pages directory instead of app.

npx create-next-app@latest

And, now install the following dependencies

npm install @trpc/server @trpc/client @trpc/react-query @trpc/next @tanstack/react-query zod

Here, zod is used for validating the inputs we give to our endpoints/procedures.

Initialize tRPC

Inside the Next.js api routes, create a folder named trpc and a dynamic route inside it [trpc].ts

It is best suggested to export router & procedure together in a separate file (server/trpc.ts), but for this example, it's completely fine to proceed without exporting and importing the entire iniTRPC object to the [trpc].ts file itself.

Inside this file, you create your root router (appRouter) and defined the endpoints, similar to REST endpoints.

import { initTRPC } from "@trpc/server";
import * as trpcNext from "@trpc/server/adapters/next";
import { z } from "zod";

const t = initTRPC.create();

const appRouter = t.router({
  greeting: t.procedure
    .input(
      z
        .object({
          name: z.string().nullish(),
        })
        .nullish() // allows `null` / `undefined` values in the schema
    )
    .query(({ input }) => {
      return {
        text: `hello ${input?.name ?? "world"}`,
      };
    }),
});

The endpoint will look like /api/trpc/greeting.

We are using zod for the input validation. By first creating the object schema, & setting name to the string schema.

The query is basically an HTTP GET request which takes a resolve function with input that we defined in the procedure above (greeting). We can use this resolve function to return some stuff, a string in this case.

Now below the appRouter, we now export its type and an API handler.

export type AppRouter = typeof appRouter;

export default trpcNext.createNextApiHandler({
  router: appRouter,
  createContext: () => ({}),
});

Create tRPC hooks & Batching

Create a utils folder on the same level as pages and a file inside it trpc.ts. Inside this file, we are creating a getBaseUrl which returns the base URL based on the specific env.

We will use trpc's createTRPCNext function to create type-safe hooks.

import { httpBatchLink } from "@trpc/client";
import { createTRPCNext } from "@trpc/next";
import type { AppRouter } from "@/pages/api/trpc/[trpc]";

function getBaseUrl() {
  if (typeof window !== "undefined") {
    return "";
  }

  if (process.env.VERCEL_URL) {
    return `https://${process.env.VERCEL_URL}`;
  }

  return `http://localhost:${process.env.PORT ?? 3000}`;
}

export const trpc = createTRPCNext<AppRouter>({
  config({ ctx }) {
    return {
      links: [
        httpBatchLink({
          url: getBaseUrl() + "/api/trpc",
        }),
      ],
    };
  },
  // ssr: true,
});

Here, httpBatchLink can take multiple URLs as an object parameter & grip them into one request. It is generally a good practice to handle multiple queries in this way.

We can now use this exported trpc to call procedures & queries on the client-side. But before that, we need to configure the _app.tsx file.

Configure _app.tsx

Export MyApp and wrap it in trpc.withTRPC

import { trpc } from "@/utils/trpc";
import type { AppProps, AppType } from "next/app";

const MyApp: AppType = ({ Component, pageProps }: AppProps) => {
  return <Component {...pageProps} />;
};

export default trpc.withTRPC(MyApp);

Client Side API consumption

Now, inside index.tsx, you can import trpc from util directory and make a call to the greeting procedure, providing the input name, as show below

import { trpc } from "@/utils/trpc";

export default function Home() {
  /* The `name` destructure is typesafe.
   * If we change the `name` in `[trpc].ts`, it will hightlight
   * the error here
   */
  const result = trpc.greeting.useQuery({ name: "sanyam" });

  if (!result?.data) {
    <div>
      <h1>Loading...</h1>
    </div>;
  }

  return (
    <div>
      <h1>{result?.data?.text}</h1>
    </div>
  );
}

Now, start your Next.js application and you can see the output being displayed.

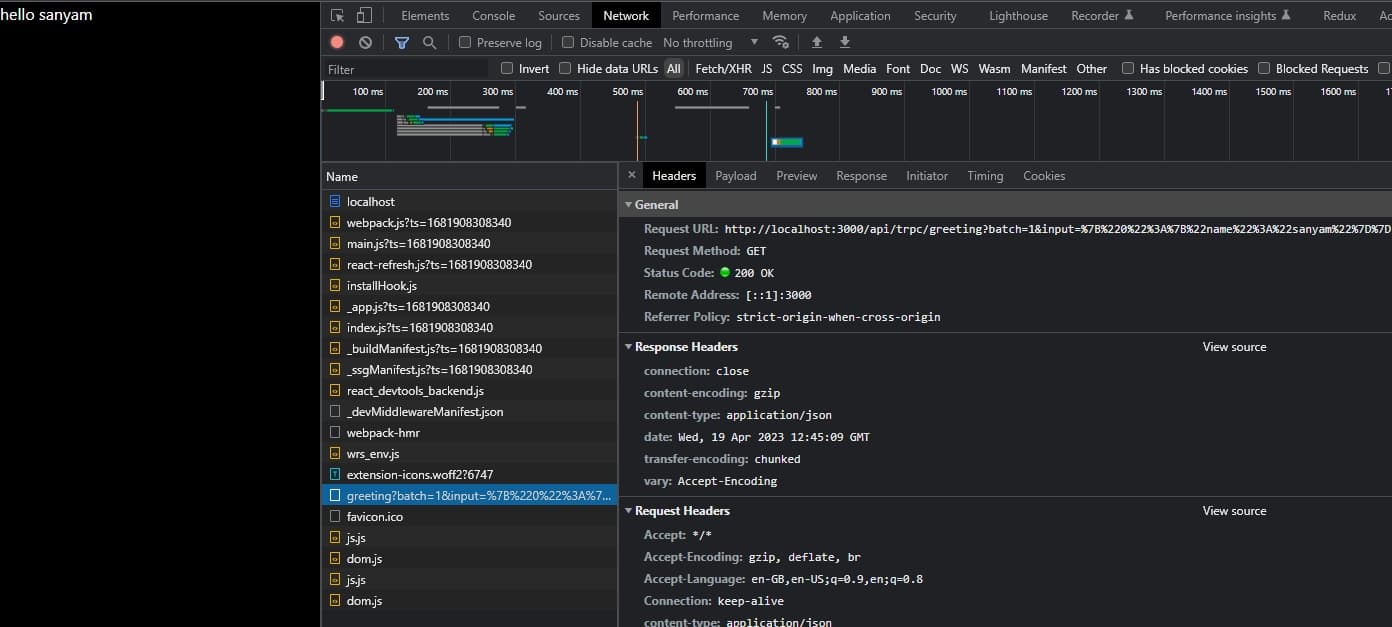

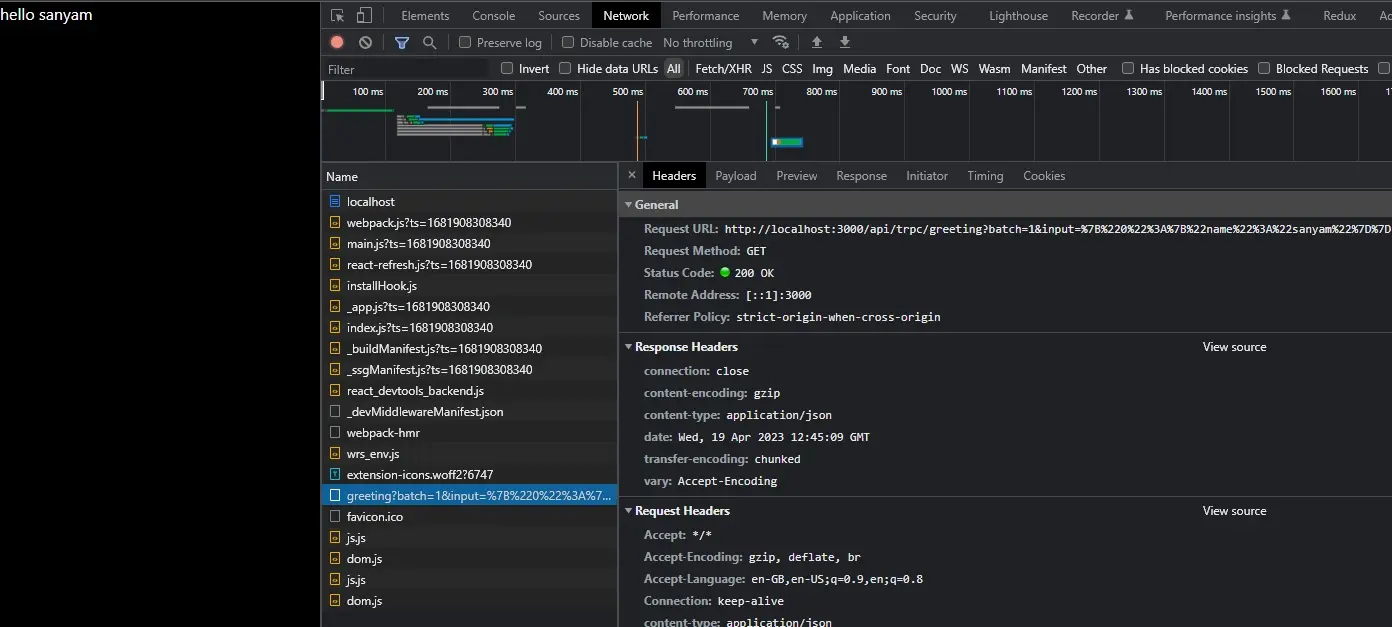

If you head over to the network tab inside the dev tool, you can notice the HTTP GET request with query parameters batch & input

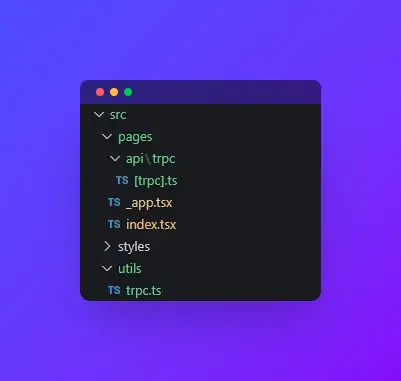

Directory Structure

Here is the final directory structure for reference purposes. This is the one recommended by tRPC itself.
